| Nombre: | Centrífugo | Modelo: | BR-Mini-4G |
|---|---|---|---|
| Motor: | Motor de imán permanente DC24V DC | Modo de control: | Unidad de potencia directa PI |
| Velocidad de rotación máxima: | 4000r/min, ±3% | Max Relative Centrifugal Force: | 990×g |
| Tiempo de aceleración más rápido: | ≤3s | Tiempo de desaceleración más rápido: | ≤3s |

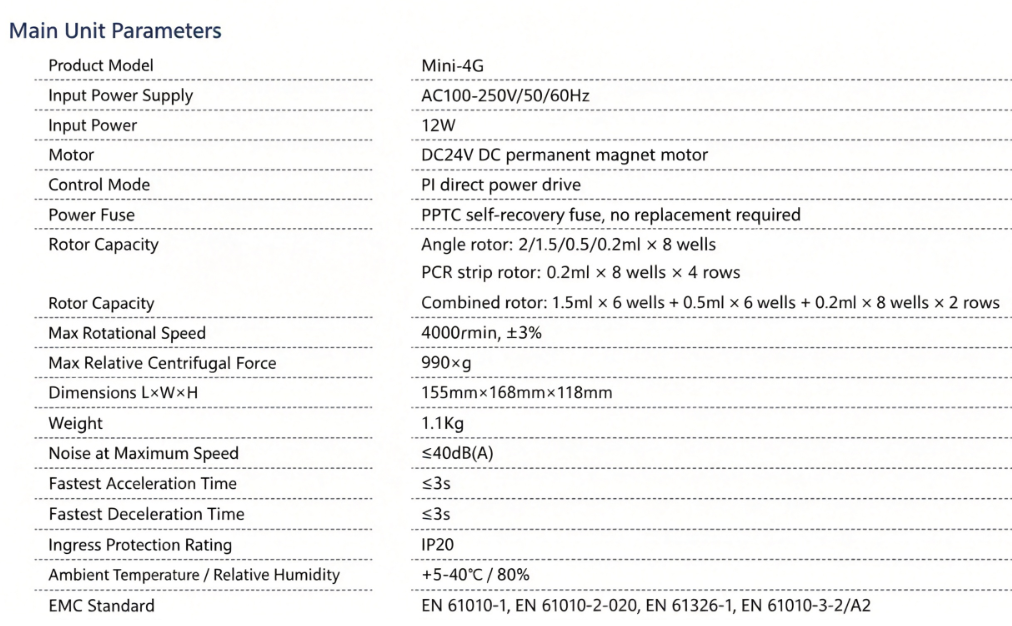

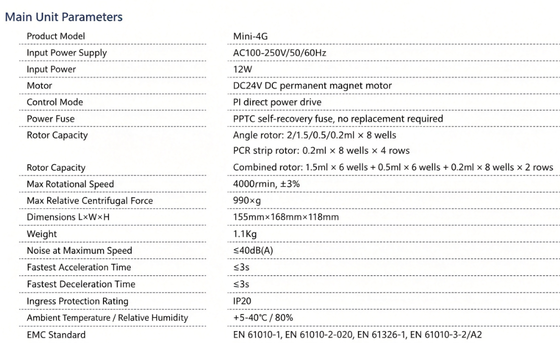

Centrifuge BR-Mini-4G Input Power Supply: AC100-250V/50/60Hz Input Power: 12W Motor: DC24V DC permanent magnet motor Control Mode: PI direct power drive Power Fuse: PPTC self-recovering fuse, no replacement required Rotor Capacity: Angle rotor: 2/1.5/0.5/0.2ml × 8 wells PCR strip rotor: 0.2ml × 8 wells × 4 rows Combined rotor: 1.5ml × 6 wells + 0.5ml × 6 wells + 0.2ml × 8 wells × 2 rows Max Rotational Speed: 4000r/min, ±3% Max Relative Centrifugal Force: 990×g Dimensions (L
